Advantages

Equipments
The product has gone through 15 processes and checked layer by layer

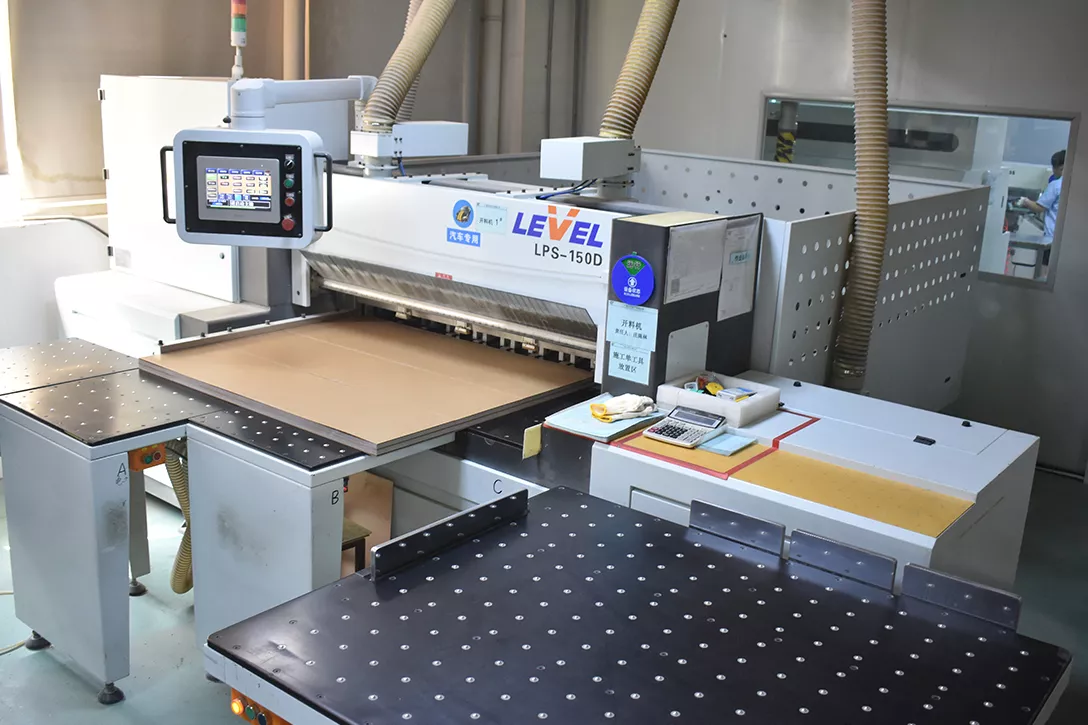

  • Cutting: LPS-150D automatic cutting machine

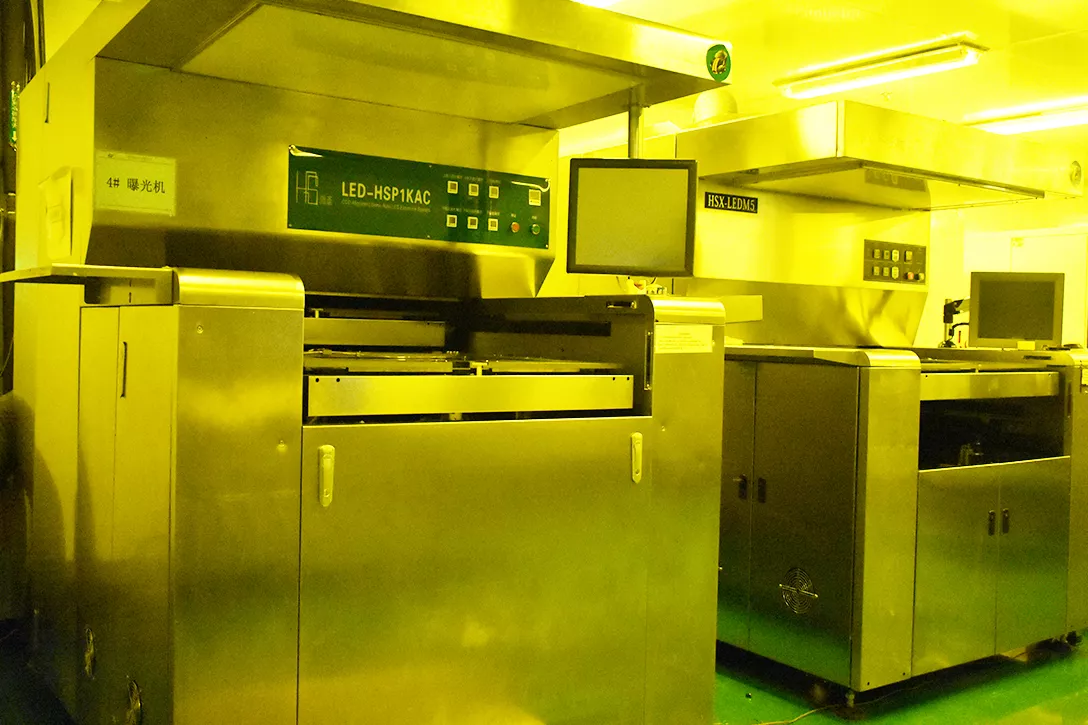

  • Inner line: line CCD semi-automatic exposure machine

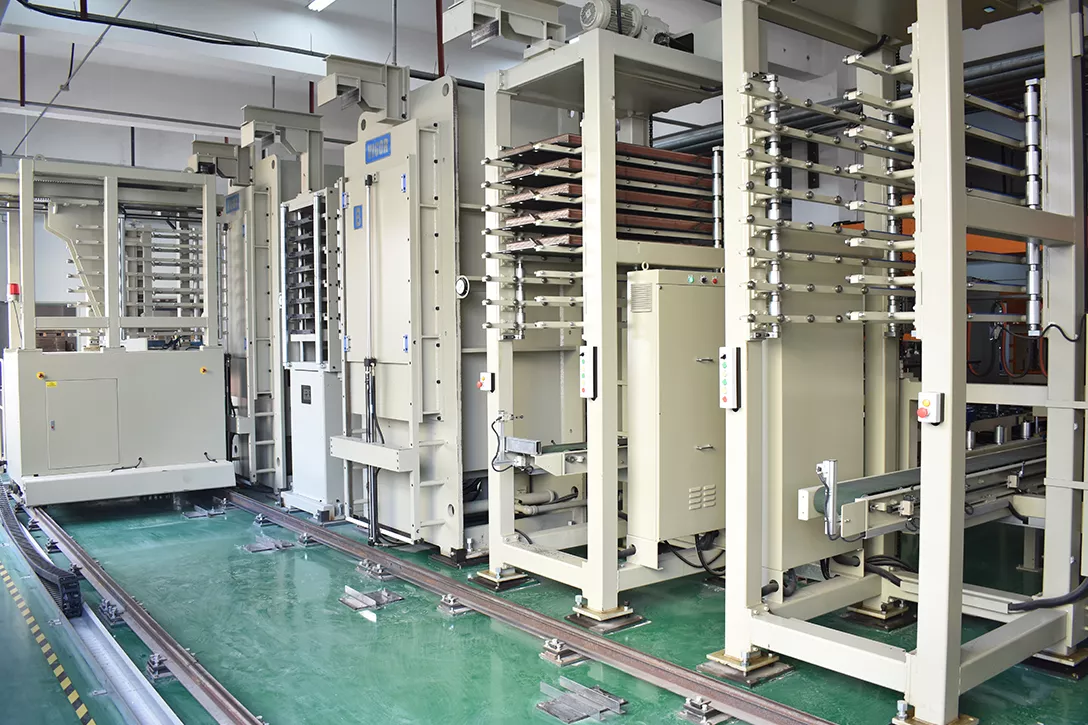

  • Pressing: Live full pressing machine

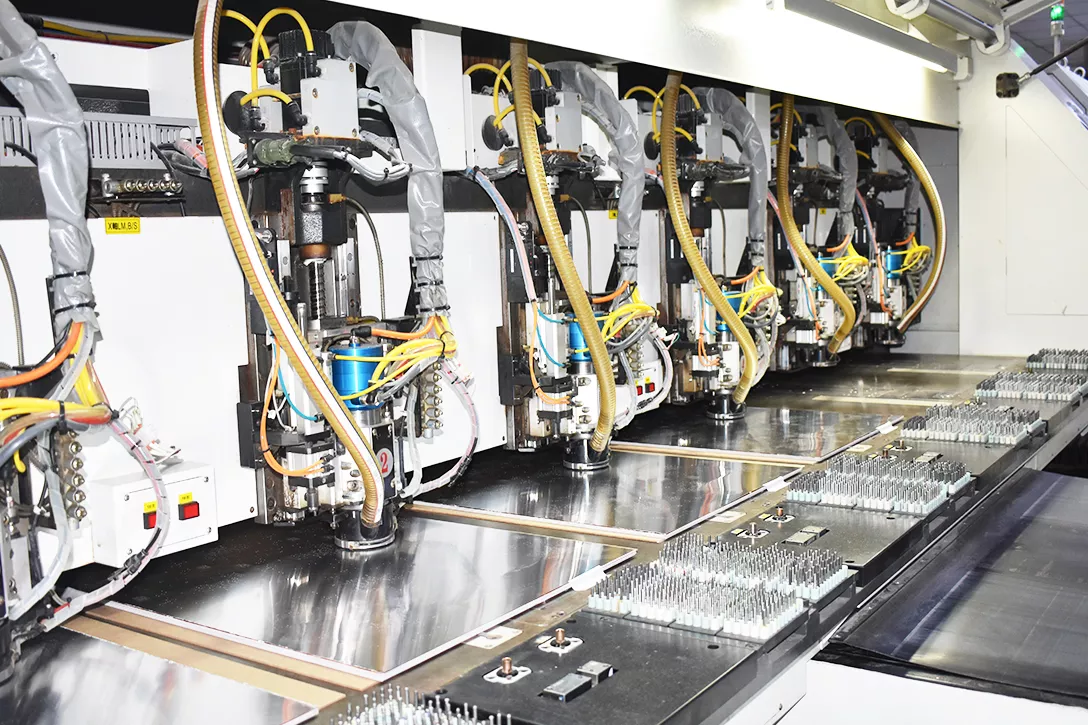

  • Drilling: Dongtai 6-axis drilling machine

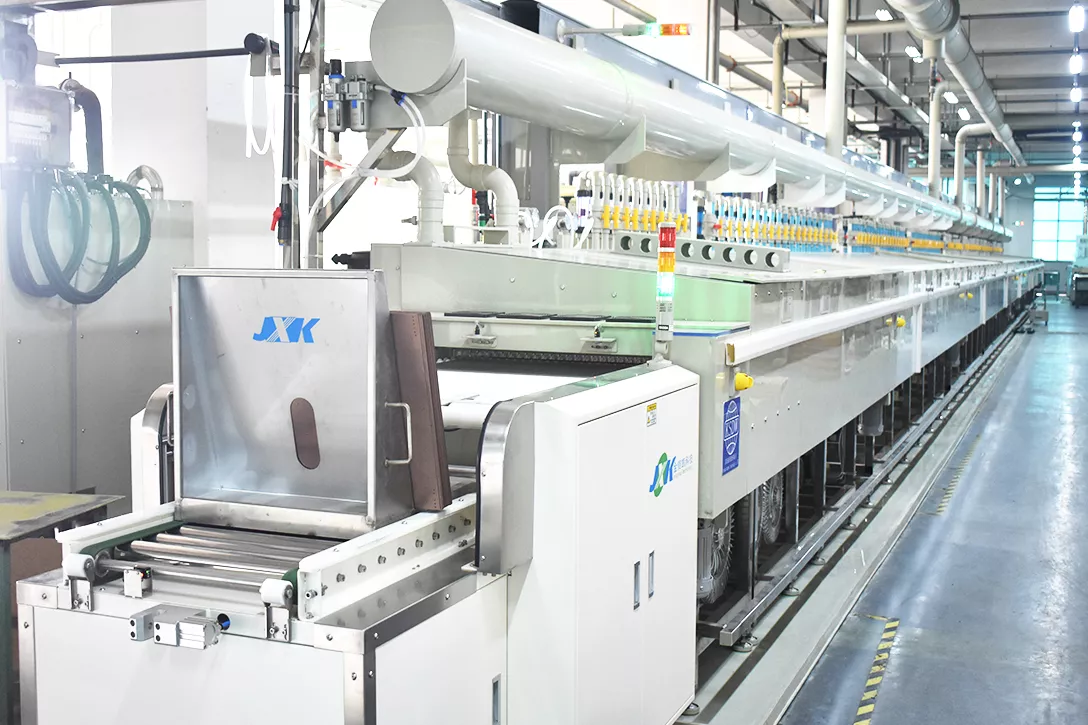

  • Copper immersion: horizontal PTH

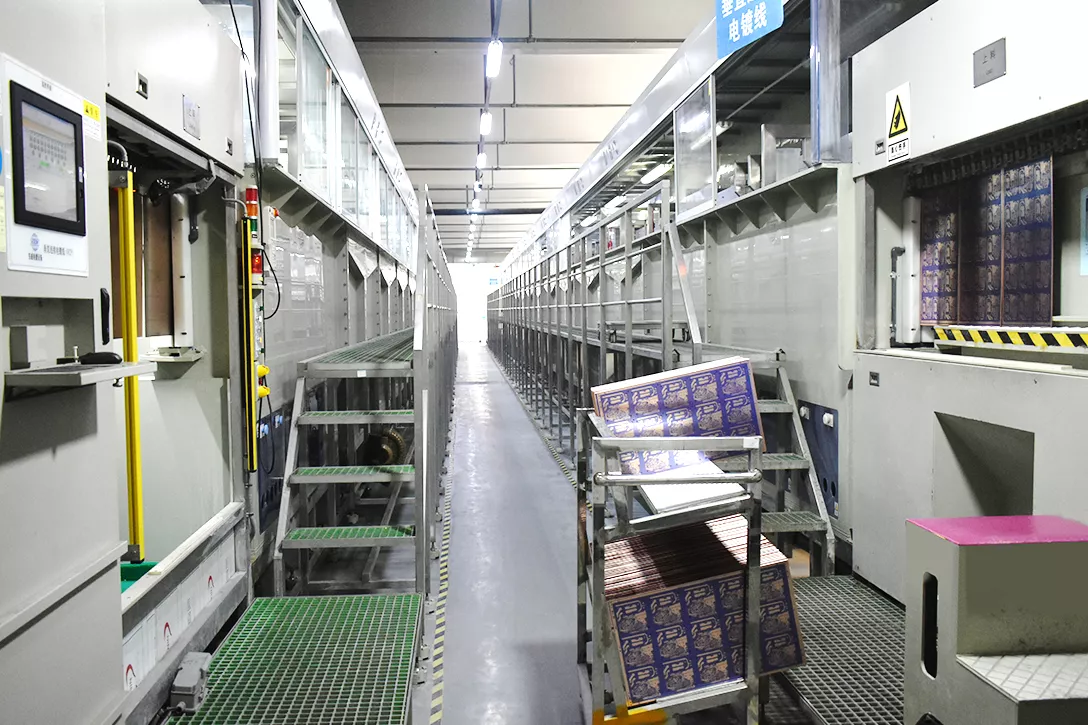

  • Electroplating: Dongwei vertical continuous plating line

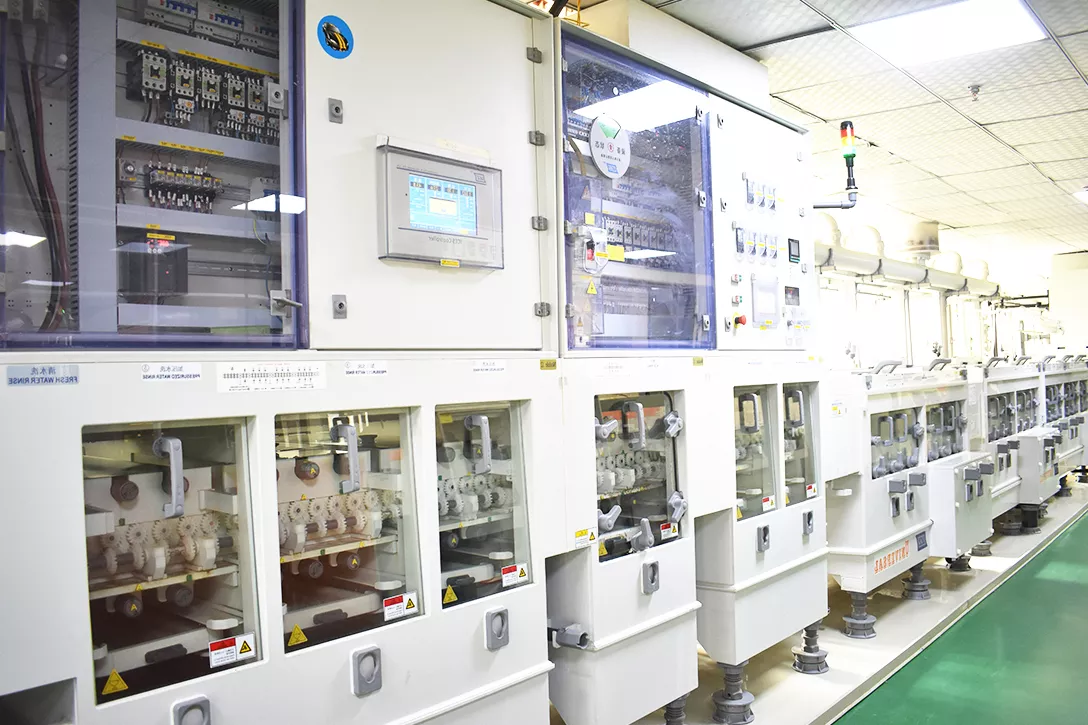

  • Etching: cosmic acid etching with film removal line

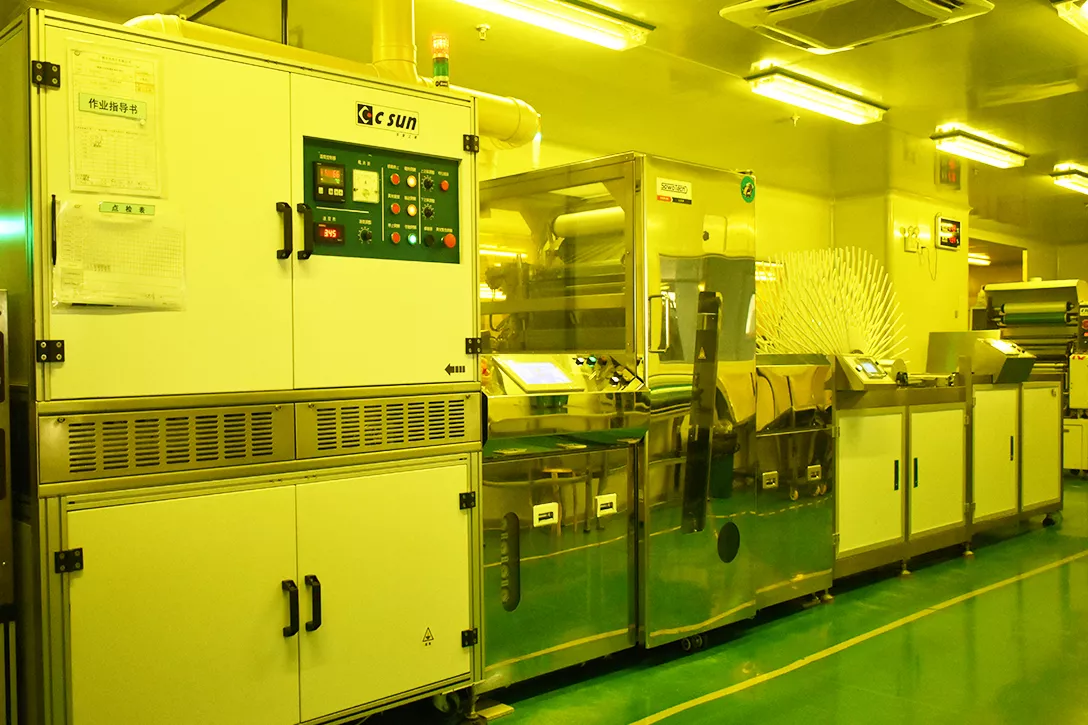

  • Outer line: Siwo automatic film drying machine

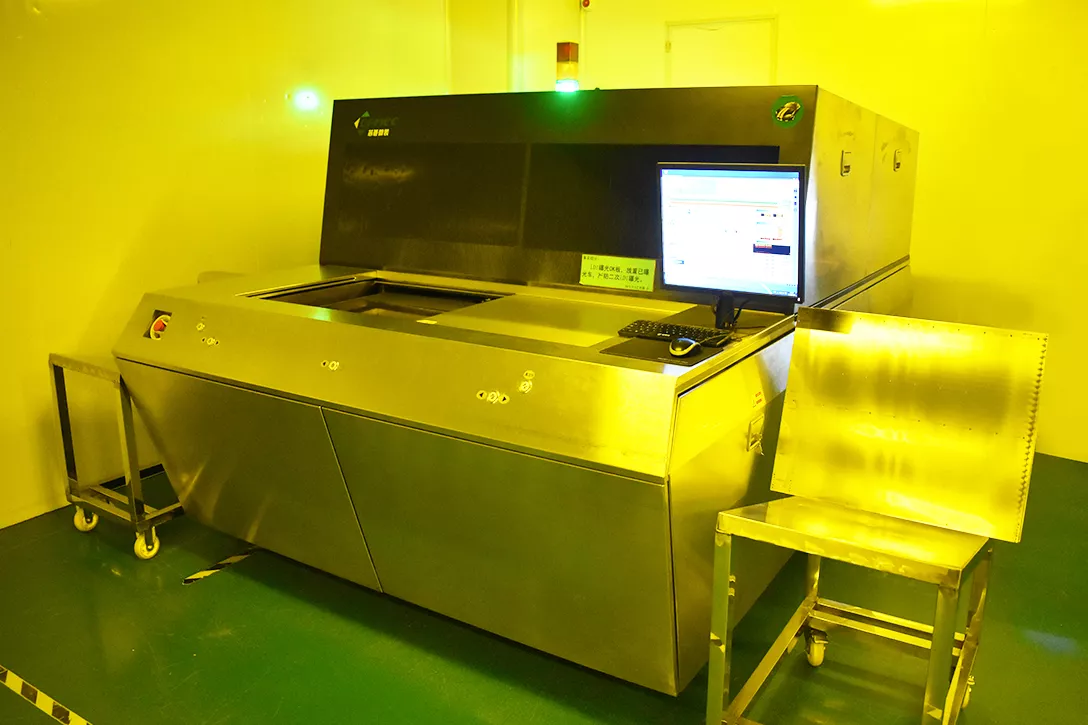

  • Outer line: core LDI exposure machine

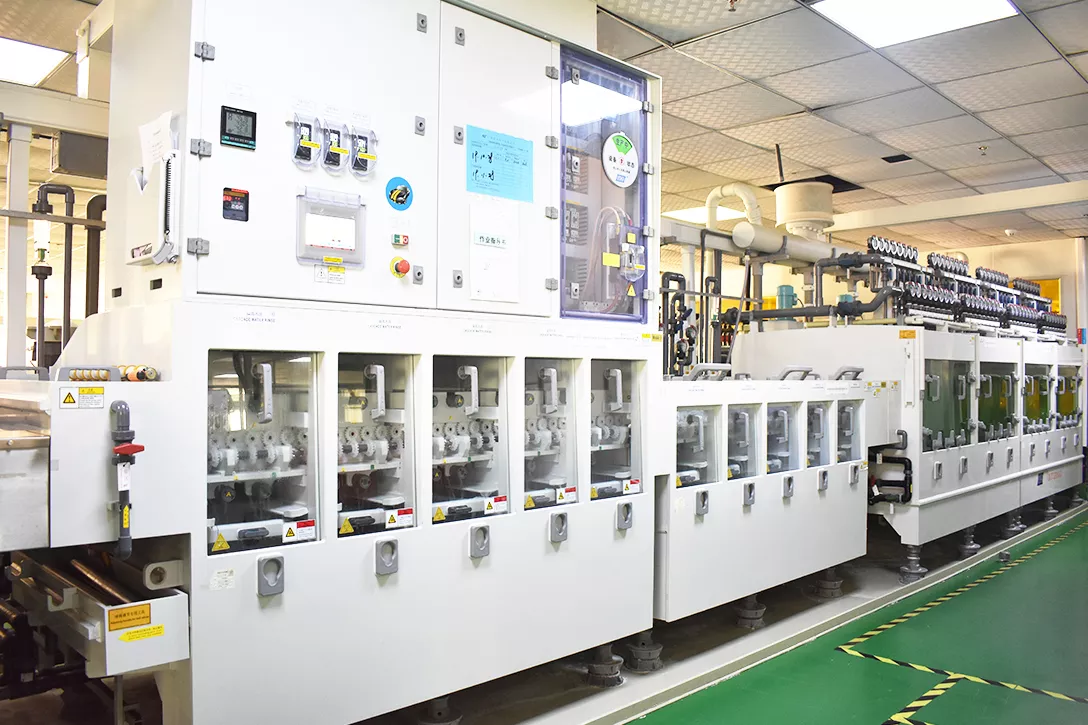

  • Outer line: cosmic dry film development line

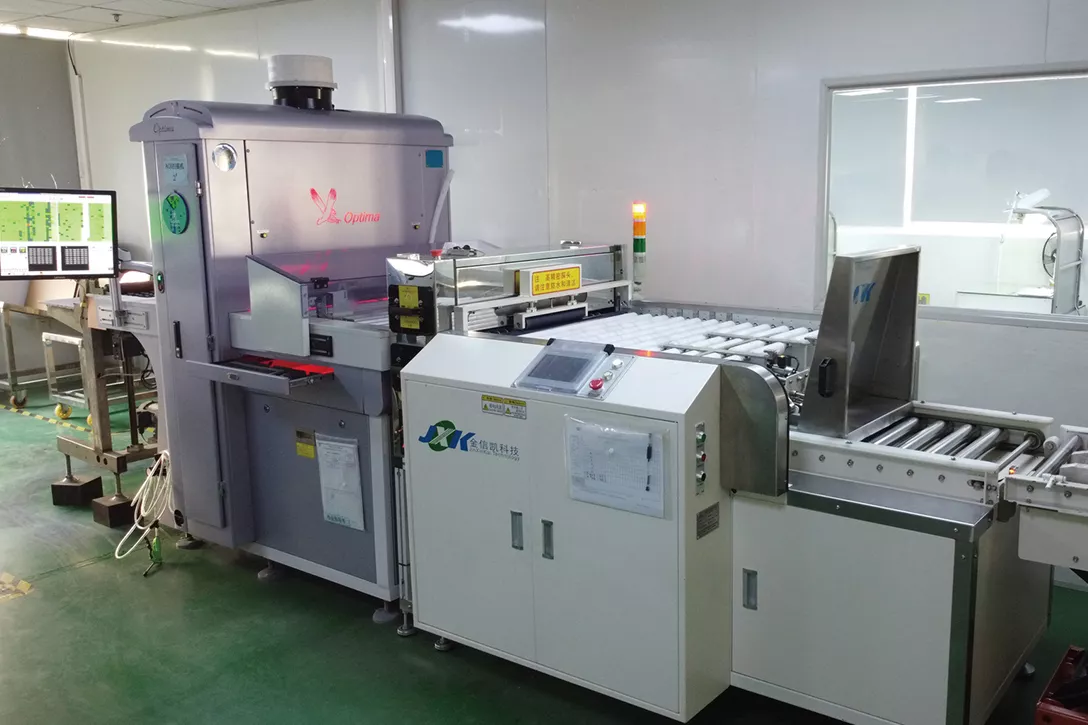

  • Outer AOI: Otima Connect AOI

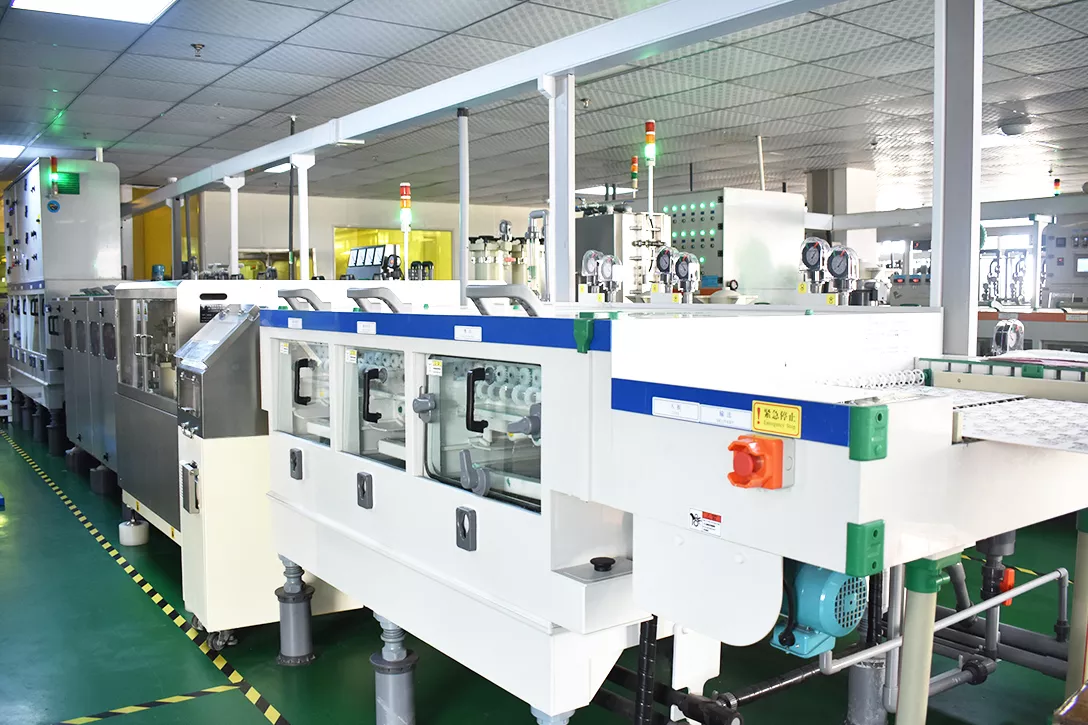

  • Soldering mask: Zhuhai Zhendong automatic grinding brush machine

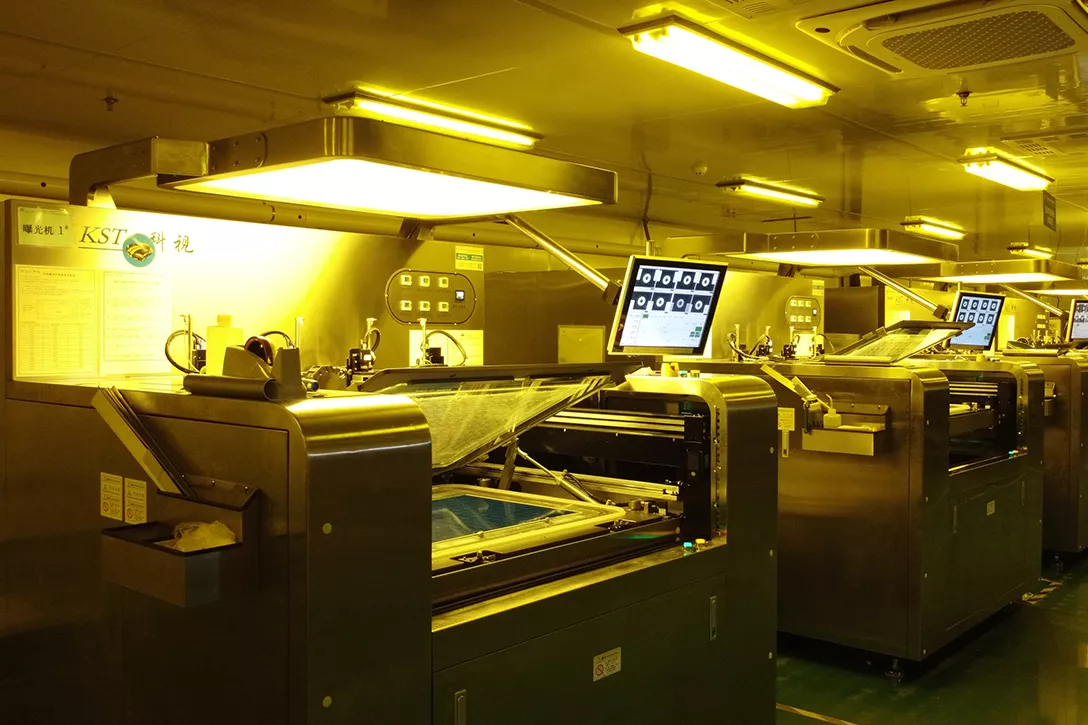

  • Solder mask: solder mask CCD semi-automatic exposure machine

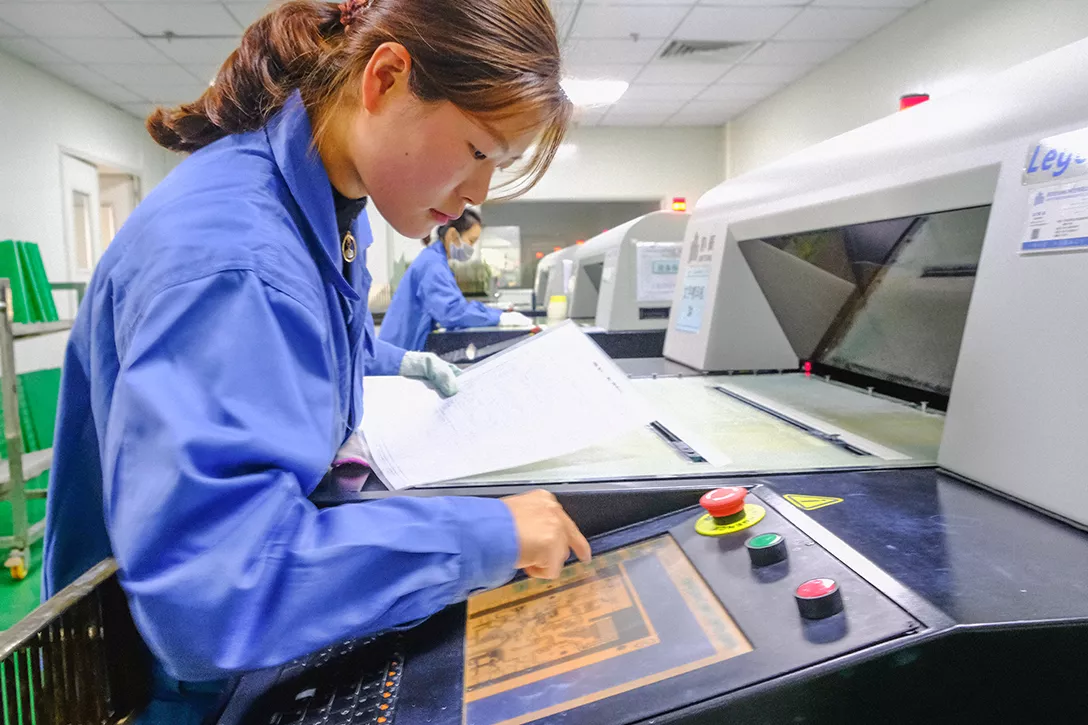

  • Characters: Text inkjet printers

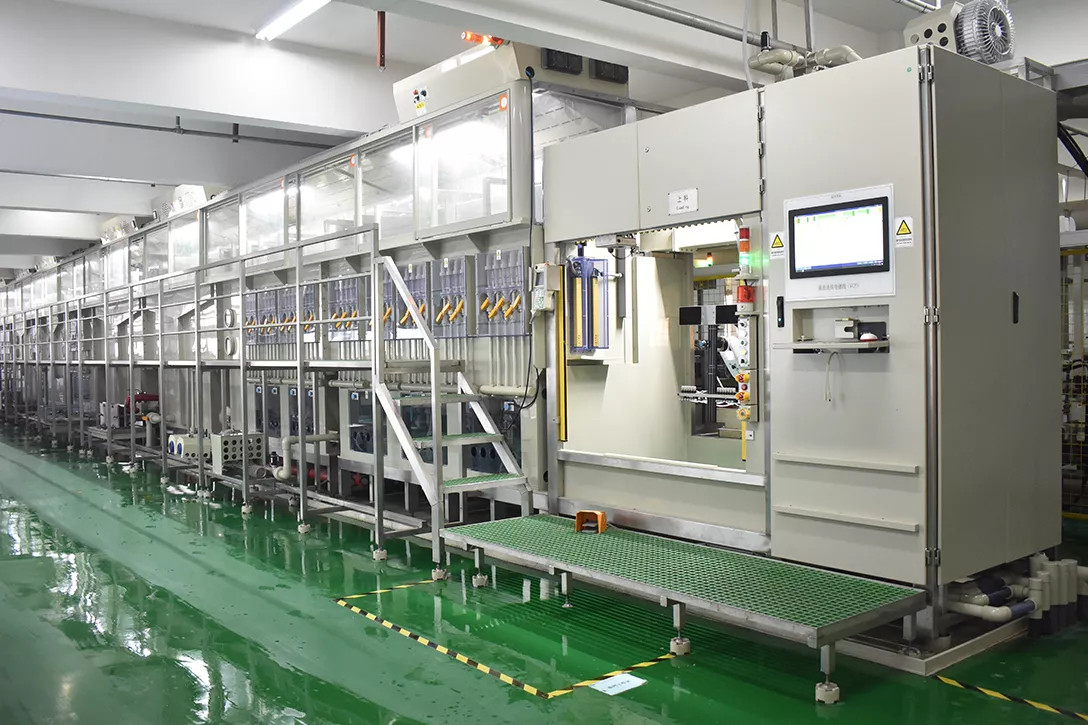

  • Electric nickel gold wire: vertical continuous electric nickel gold wire

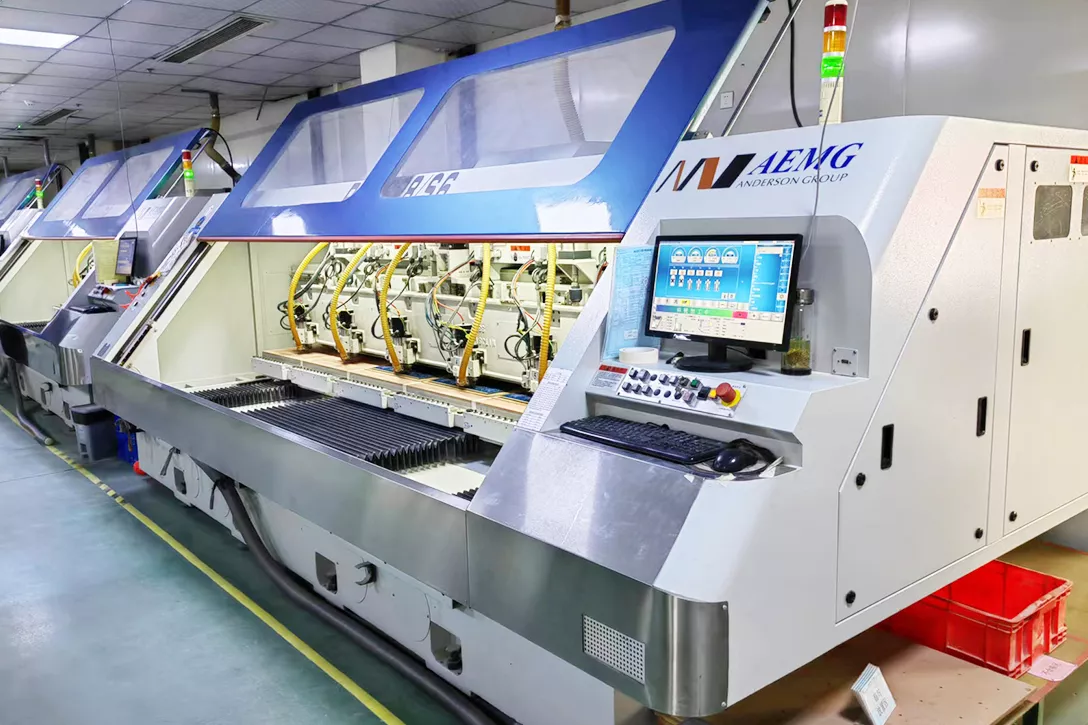

  • Forming: CNC molding machine

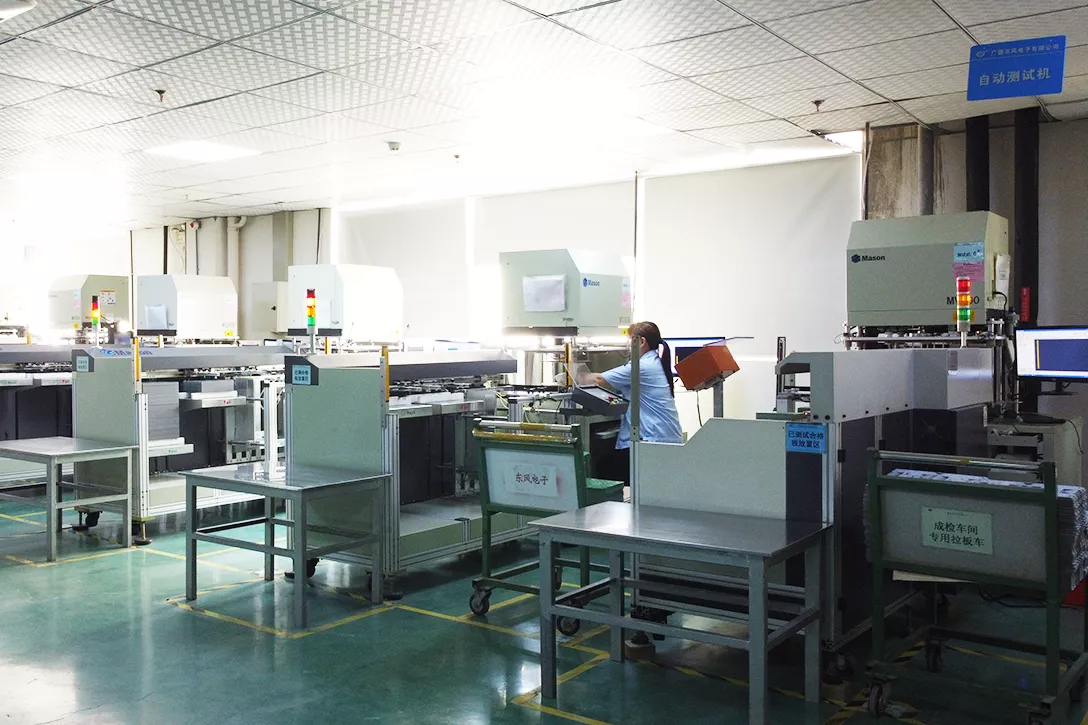

  • Electrical test: automatic testing machine

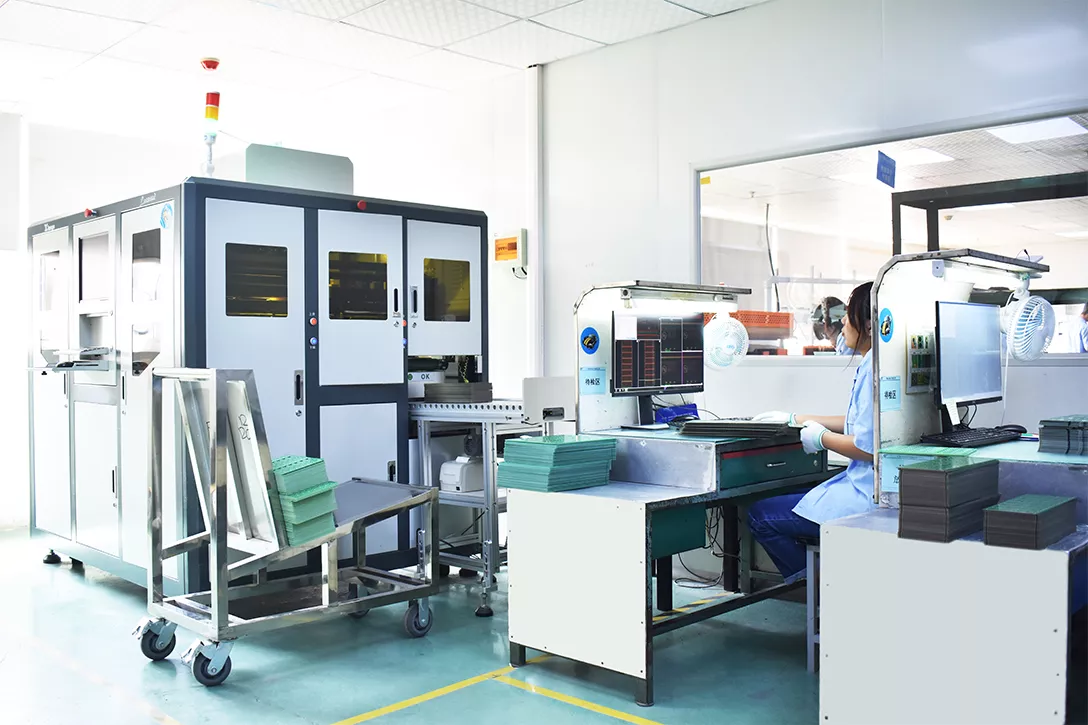

  • Finished product inspection: Yimeizhi automatic appearance inspection machine
123
Listing
Customers can customize products according to actual needs
7 treatment processes
Anti-oxidation, lead tin, lead-free tin, foot gold, nickel-plated gold, gold, carbon film
6 types of material plates
CEM-1、CEM-3、FR-4、Aluminum substrate, rogers, PTFE
Multidimensional thickness
Board thickness 0.2~3.2mm
Copper foil 0.5OZ~3OZ
Nickel thickness 2~6μm
Gold thickness 0.03~1μm
Shape customization
Rectangular, square, round, special-shaped, etc., can be according to your needs
Color customization
Green, black, blue, white, red and other color options, can be customized according to the application scenario
Size customization
Maximum processing area 600mm*1200mm
Logo printing
Brand logo, product model and description information can be printed on each plate
Customized outer packaging
Vacuum packing, label identification, kraft carton packing

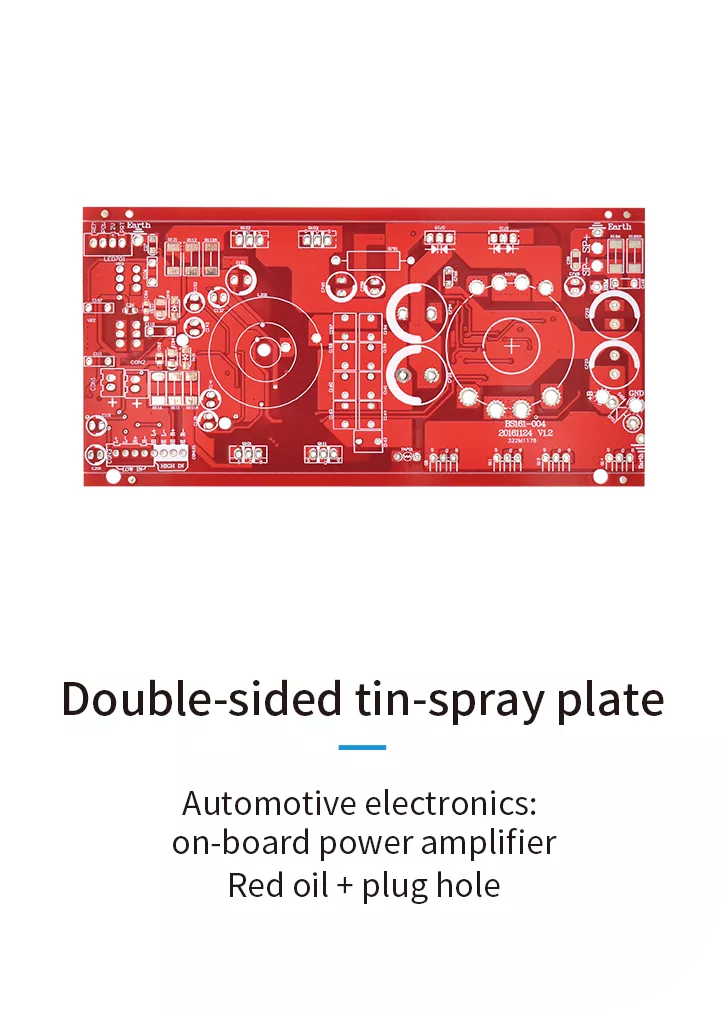

Cases
Partners

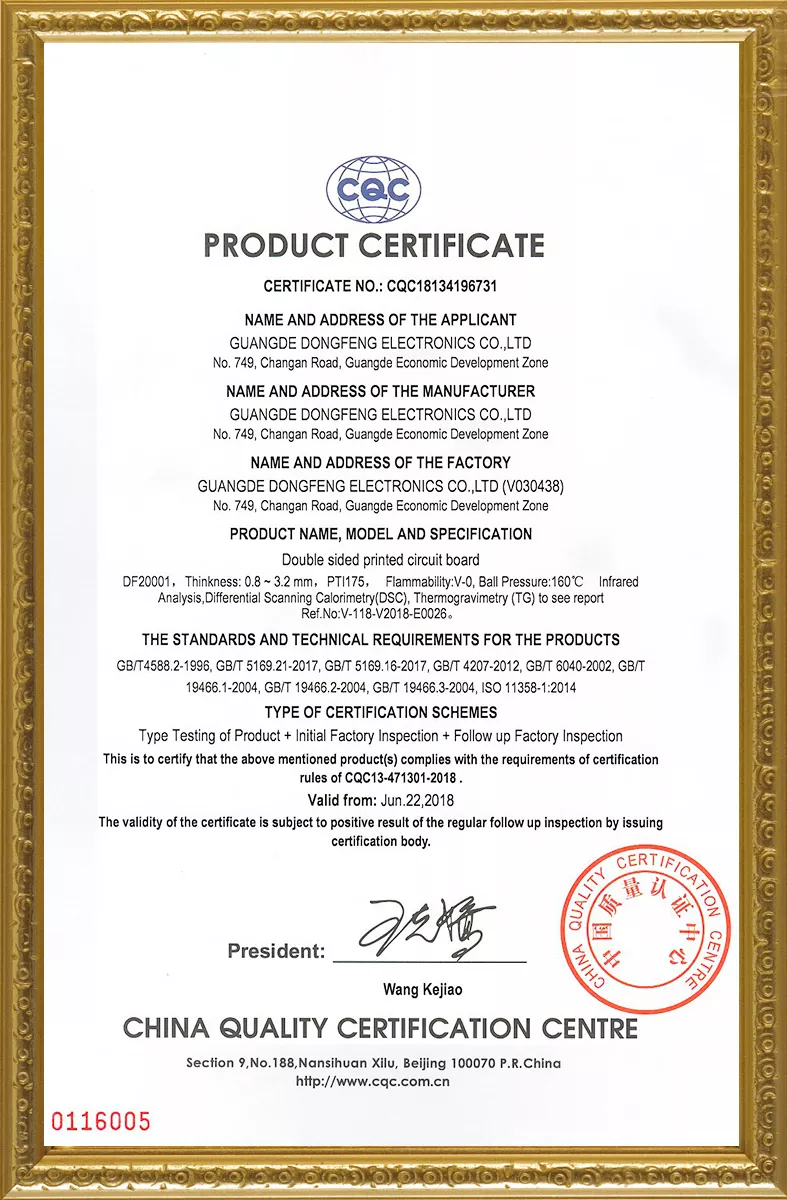

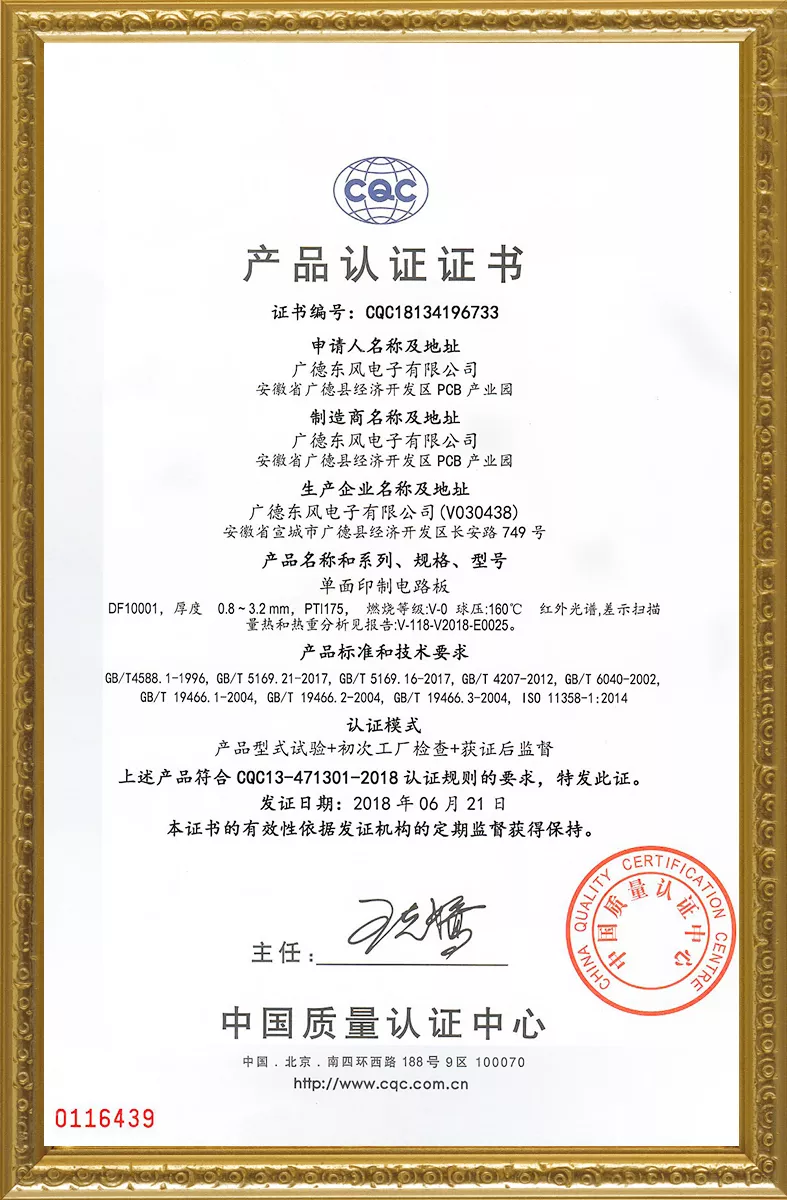

Certificates of Products
